Multi Function Pwm Solar Power Controller Automatic Identification System

Ask Latest Price
Video Channel
Place of Origin :Guangdong, China
Brand Name :SRNE
Model Number :SR-LM10A
Certification :CE/RoHS/ ISO9001
Supply Ability :1000 Piece/Pieces per Month
Packaging Details :packing situation:36 pieces for a carton the carton size:335*300*210mm
MOQ :1
Price :Negotiable
Application :Collector Controller
Maximum Current :10A
Rated Voltage :12V/24V
No-load loss :< 10mA/12V;10mA/24V
Working temperature :-35℃ to +65℃
Protection level :IP30
Weight :120g
Dimensions :124.7*69.4*34.0(mm)(L*W*H)
Charge mode :PWM Charging
Warranty :1 Year
Port :shenzhen
more
Contact Now

Add to Cart

Find Similar Videos
View Product Description

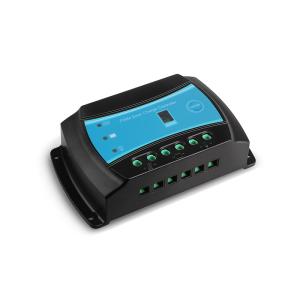

Multi Function Pwm Solar Power Controller Automatic Identification System

Automatic identification system new solar controller

Product Description

Features of SR-LM10A

1. Automatic identification of 12V/24V system voltage.
2. LED digital display and single key operations which makes operate simply and conveniently.
3. Adopting ternary form charging algorithm, charge the storage battery in equalizing charge mode once a week .It can prevent battery from imbalance and vulcanization effectively, also battery service life will be extended.
4. Four working modes which made it convenient to use in all kinds of street lamps and monitoring devices.
5. Designed in industrial-scale which can suitable use for harsh environments.
6. Has the electricity protection data function .Parameter can be stored when the power system failure. No need to setting again. It is very simple and convenient to use.
7. Various status indications.
8. Over charging protection, over discharging protection, over load, short circuit protection, reverse polarity protection
9. 5V USB output connector can use for charging electronic equipment.
10. TVS lightning protection.

Parameter of SR-LM10A

System voltage

12V/24V Auto

System current

10A

No-load loss

< 10mA/12V;10mA/24V

Solar energy input voltage

< 55V

Over voltage protection

17.0V; ×2/24V

Equal charging voltage

14.6V; ×2/24V(25℃), duration:1h

Ascending charging voltage

14.4V; ×2/24V(25℃), duration:2h

Float charging voltage

13.8V; ×2/24V (25℃)

Return voltage during charging

13.2V; ×2/24V (25℃)

Return voltage for over-discharging

12.6V; ×2/24V

Under voltage

12.0V; ×2/24V

Over-discharging voltage

11.1V; ×2/24V

Temperature compensation

-4.0mv/℃/2V

Light-control voltage

Light-control open 5V; light-control close 6V

Light-control judgment time

10min

USB Output

5V/1.2A

Circuit protection

Over-charge, over-discharge, short circuit and over-load protection

Anti- connection-reverse protection for solar battery and storage battery.

Working temperature

-35℃ to +65℃

Protection level

IP30

Weight

120g

Dimensions

124.7×69.4×34.0(mm)(L×W×H)

Detail of SR-LM10A

Multi Function Pwm Solar Power Controller Automatic Identification System

Multi Function Pwm Solar Power Controller Automatic Identification SystemMulti Function Pwm Solar Power Controller Automatic Identification System

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment for regular order

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: Sample can be sent upon request as you requested, sample fee refund after order placed

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
